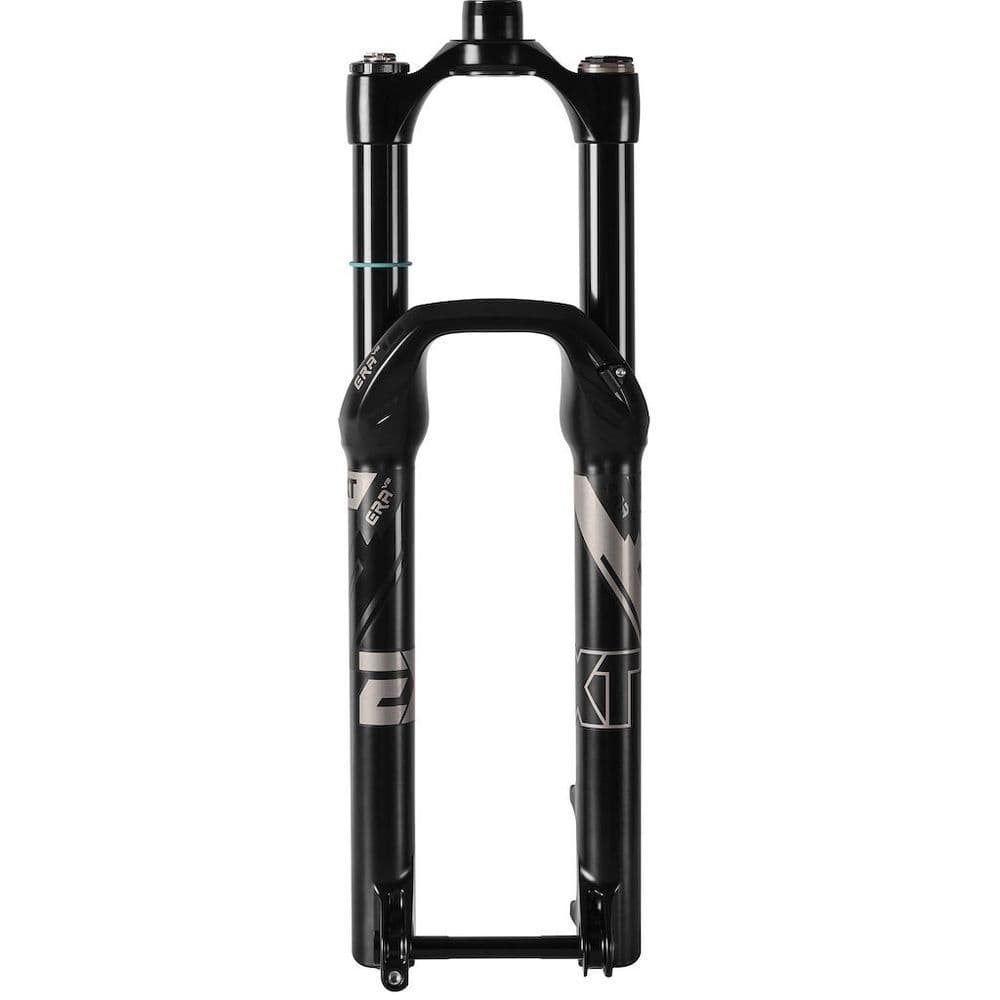

EXT V2.1 ERA fork

EXT's newest version of the Era the V2.1 features a host of incremental imporvements (all retro-fittable!) From new bushes for less friction, new valving for better range of settings to the new air shaft with larger negative and re-configured + and ++ volumes for more comfort, more support and greater range of adjustment.

• HS3, Hybrid coil and air spring: with 2 adjustable positive air chambers and high volume negative chamber
• New Crown design: forged AL 7050 T6 to substantially increase stiffness
• High volume Cartridge with Ø22 mm piston, engineered circuit to separate bump and rebound oil flow
• HDRV unique compression valve system Ø24 mm piston
• IFP reservoir Ø24 mm piston
• 3 way adjustable, Low and High speed Bump and Rebound
• Main strut low friction system: new DU bushing material from our WRC technology combined with dedicated EXT oil
• Cartridge and Air spring low friction System: innovative floating shaft guide combined with the EXT proprietary coating and superfinish chrome shaft.

AVAILABLE STROKES
– 140mm to
– 170mm in 10mm increments

AVAILABLE WHEEL SIZE/OFFSET
– 29 inch
– Offset: 44 mm
